mPlayer

mPlayer is a simple Silverlight-based Media Player with support for Video and Audio content with Playback and Audio control such as Volume and more!

Printer Friendly Download Tutorial (316KB) Download Source Code (6.40KB) Online Demonstration

Step 1

Start Microsoft Visual Web Developer 2010 Express, then Select File then New Project... Select "Visual Basic" then "Silverlight Application" from Templates, select a Location if you wish, then enter a name for the Project and then click OK, see below:

New Project

Step 2

New Silverlight Application window should appear, uncheck the box "Host the Silverlight Application in a new Web site" and then select the required Silverlight Version, see below:

New Silverlight Application

Step 3

A Blank Page named MainPage.xaml should then appear, see below:

MainPage.xaml

Step 4

Then from the All Silverlight Controls section in the Toolbox select the Canvas control:

Canvas Control

Step 5

Draw a Two Canvases on the Page then in the XAML Pane above the "</Grid>" then change the "<Canvas>" lines to the following:

<Canvas Height="35" Width="400" VerticalAlignment="Top" HorizontalAlignment="Left" Name="Toolbar"></Canvas>
<Canvas Height="35" Width="400" Margin="0,265,0,0" VerticalAlignment="Top" HorizontalAlignment="Left" Name="Playback"></Canvas>

See below:

MainPage with Toolbar Canvas and Playback Canvas

Step 6

Then from the Common Silverlight Controls section in the Toolbox select the Button control:

Button Control

Step 7

Draw Three Buttons on the "Toolbar" Canvas by dragging the Buttons from the Toolbox onto the Canvas then in the XAML Pane inbetween top the "<Canvas>" and "</Canvas>" tags change the "<Button>" lines to the following:

<Button Canvas.Left="6" Canvas.Top="6" Height="23" Width="75" Name="Open" Content="Open..."/>
<Button Canvas.Left="87" Canvas.Top="6" Height="23" Width="75" Name="PlayPause" Content="Play Pause"/>
<Button Canvas.Left="168" Canvas.Top="6" Height="23" Width="75" Name="Stop" Content="Stop"/>

See below:

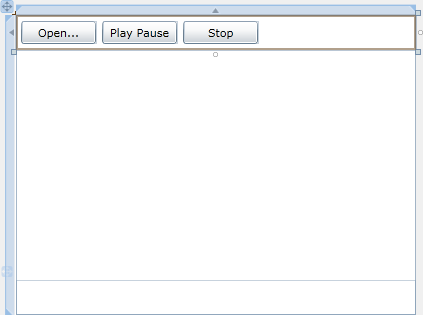

MainPage with Canvas and Buttons

Step 8

Then from the All Silverlight Controls section in the Toolbox select the Slider control:

Slider Control

Step 9

Draw One Slider on the Upper Canvas (Toolbar) with the Buttons, and change the <Slider> line to the following:

<Slider Canvas.Left="249" Canvas.Top="6" Height="23" Width="75" Minimum="-1" Maximum="1" Value="0" Name="Balance"/>

Then Draw Two more Sliders onto the Bottom Canvas (Playback) and change the <Slider> lines to the following:

<Slider Canvas.Left="6" Canvas.Top="6" Height="23" Width="237" Name="Position"/>
<Slider Canvas.Left="249" Canvas.Top="6" Height="23" Width="75" Minimum="0" Maximum="1" Value="0.5" Name="Volume"/>

See below:

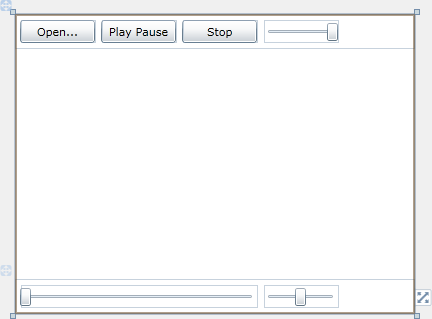

MainPage with Buttons and Sliders

Step 10

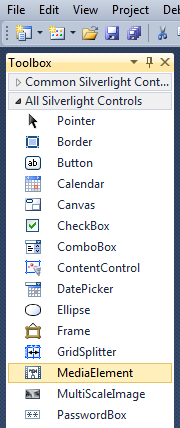

Then from the All Silverlight Controls section in the Toolbox select the MediaElement control:

MediaElement Control

Step 11

Draw a MediaElement on the Page between the Canvases and in the XAML Pane change the "<MediaElement>" line to the following:

<MediaElement Height="230" Width="400" Margin="0,35,0,0" HorizontalAlignment="Left" VerticalAlignment="Top" Stretch="Uniform" Name="Player"/>

See below:

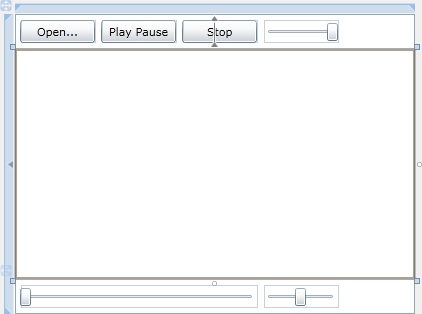

MainPage with MediaElement

Step 12

Right Click on the Page or the entry for "MainPage.xaml" in Solution Explorer and choose the "View Code" option.
In the Code View below the "End Sub" for "Public Sub New()" Constructor type the following Event Handler Subs:

Private Sub Player_MediaOpened(ByVal sender As Object, _
    ByVal args As RoutedEventArgs) _
    Handles Player.MediaOpened
  Position.Maximum = Player.NaturalDuration.TimeSpan.TotalMilliseconds
End Sub

Private Sub Player_MediaEnded(ByVal sender As Object, _
    ByVal args As RoutedEventArgs) _
    Handles Player.MediaEnded
  Player.Stop()
End Sub

See Below:

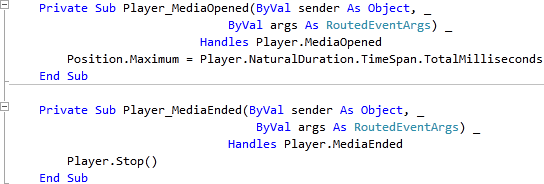

MainPage.xaml Player Event Handlers

Step 13

Return to the Designer View, by selecting the "MainPage.xaml" Tab, or Right Click on the Page or the Entry for "MainPage.xaml" in Solution Explorer and choose the "View Designer" option.
Double Click on the "Open..." Button and type in the Open_Click Sub:

Dim OpenDialog As New OpenFileDialog
OpenDialog.Filter = "Audio|*.wma;*.mp3|Video|*.wmv;*mp4"
If OpenDialog.ShowDialog Then
  Try
    If OpenDialog.File.Exists Then
      Player.SetSource(OpenDialog.File.OpenRead())
    End If
  Catch ex As Exception
    ' Ignore Errors
  End Try
End If

See Below:

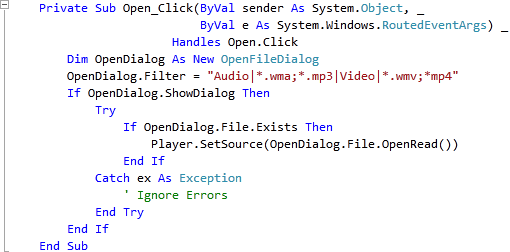

Open Button Click Event

Step 14

Return to the Designer View again, by selecting the "MainPage.xaml" Tab, or Right Click on the Page or the Entry for "MainPage.xaml" in Solution Explorer and choose the "View Designer" option.
Double Click on the "Play Pause" Button and type in the PlayPause_Click Sub:

If Player.CurrentState = MediaElementState.Playing Then
    Player.Pause()
Else
    Player.Play()
End If

See Below:

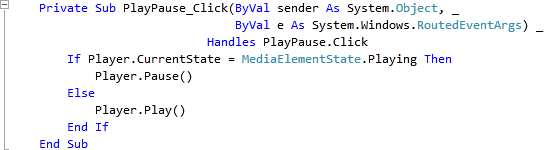

Play Pause Button Click Event

Step 15

Return to the Designer View, by selecting the "MainPage.xaml" Tab, or Right Click on the Page or the Entry for "MainPage.xaml" in Solution Explorer and choose the "View Designer" option.
Double Click on the "Stop" Button Control and type in the Stop_Click Sub:

Player.Stop()

See Below:

Stop Button Click Event

Step 16

Return to the Designer View, by selecting the "MainPage.xaml" Tab, or Right Click on the Page or the Entry for "MainPage.xaml" in Solution Explorer and choose the "View Designer" option.
Double Click on the "Balance" Slider Control, at the end of the Buttons on the Toolbar Canvas, and type in the Balance_ValueChanged Sub:

Player.Balance = Balance.Value

See Below:

Balance Slider ValueChanged Event

Step 17

Return to the Designer View, by selecting the "MainPage.xaml" Tab, or Right Click on the Page or the Entry for "MainPage.xaml" in Solution Explorer and choose the "View Designer" option.
Double Click on the "Position" Slider Control, which is the larger Slider on the "Playback" Canvas, and type in the Position_ValueChanged Sub:

Player.Position = TimeSpan.FromMilliseconds(CInt(Position.Value))

See Below:

Position Slider ValueChanged Event

Step 18

Return to the Designer View, by selecting the "MainPage.xaml" Tab, or Right Click on the Page or the Entry for "MainPage.xaml" in Solution Explorer and choose the "View Designer" option.
Double Click on the "Volume" Slider Control, which is next to the "Position" Slider, and type in the Volume_ValueChanged Sub:

Player.Volume = Volume.Value

See Below:

Volume Slider ValueChanged Event

Step 19

Save the Project as you have now finished the Silverlight application. Select Debug then Start Debugging or click on Start Debugging:

Start Debugging

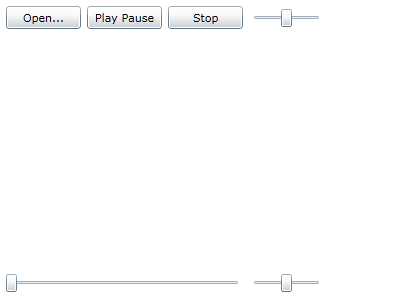

After you do, the following will appear in a new Web Browser window:

Application Running

Step 20

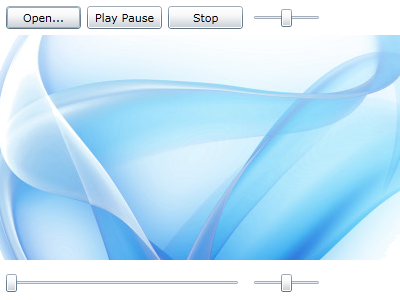

You can Open compatible Audio and Video to Play such as Windows Media Audio/Video and MP3, see below:

mPlayer

Step 21

Close the Browser window by clicking on the Close Button Close on the top right of the Web Browser to Stop the application.

This is a simple Media Playing application, try adding more features such as Fast Forward or Rewind, it also possible to use this as a basis for a Hosted-Media Player to play content from an web address - make it your own!
